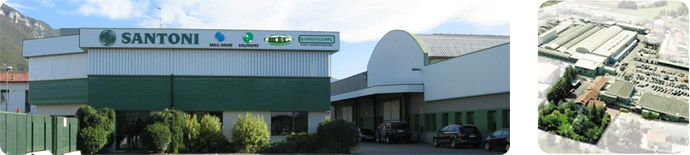

Santoni was born in 1919 as the first Italian socks machine manufacturer. In 1988 Santoni enters in the prestigious LONATI group, worldwide leader in the production of sock and pantyhose machines.
From then on, the company has related his name to the "SEAMLESS" phenomenon, becoming itself worldwide leader in the production of electronic machines for garments without seams.
Today Santoni meets 97% of the worldwide demand for seamless machines, whose use, make possible the development of a growing success diversified in various sectors of the garments market (underwear, sportswear, beachwear, outerwear e medical wear)
Thanks to the potentiality and versatility of their machines, the company has moved from the production of machines for underwear, to the last conquest; the production of machine for knitwear

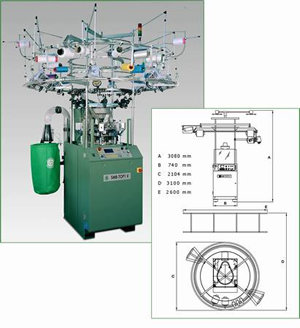

- Single jersey electronical circular machine with 8 feeds with 4 selection point per feed.
For the hight production of single body-size garments, for underwear, outwear, beachwear, sportswear, sanitarywear; by using natural, synthetic, artificial yarns and bare and covered elastomers. Terry possibility on request.
System patented by SANTONI. It allows the realization on the 8 feeds of patterns having a high definition and sharpness of the color.
-
SPEED
Diam. from 12'' to 20'' speed factor 1430 (13'' max 110 rpm in plain jersey)CONSUMPTION
Absorbed power:
- 4,5 Kw for fan (from diam. 12 to 16'')
- 5,2 Kw for fan (from diam. 17 to 20'')
- 2,5 Kw for motor
- 50 litres/1' of compressed air at 6 BARTYPE OF SELECTION
4 ACTUATOR per feed at 16 liversSTRIPPING YARNFINGERS
Nr.10 yarnfingers per feed:
- 3 yarnfingers with three positions for bottom yarn;
- 3 yarnfingers with four positions for one color, one reinforcement (floating yarn) or one bottom yarn;
- 1 yarnfinger with six positions for one color or one reinforcement and for the bottom of the sharp pattern (floated yarns);
- 3 yarnfinger with four positions for one color or one reinforcement.
Double Knit Electronic Circulra Kniting Machine with 6 feeds, suitable for the production of single piece seamless-wear garment(outwear) with true rib border. Three technical ways Neddle-by-needle individual selection on the cylinder, high definition and floating yarn patterning. Possibility to use natural, synthetics, man made fibre yarns, bare and covered elastomer.
